OREI 8X8 4K HDMI Matrix Switcher Extender - HDBaseT UltraHD 4K @ 60Hz 4:4:4 Over Single CAT5e/6/7 Cable with HDR, CEC & IR Control, RS-232 - Up to 400 Ft - Additional 8 Loop Out - 8 Receivers

Overview

• Color : Black
• Connector Type : HDMI
• Brand : OREI
• Compatible Devices : Blu-Ray Player, Gaming Console
• Cable Type : HDMI

About this item

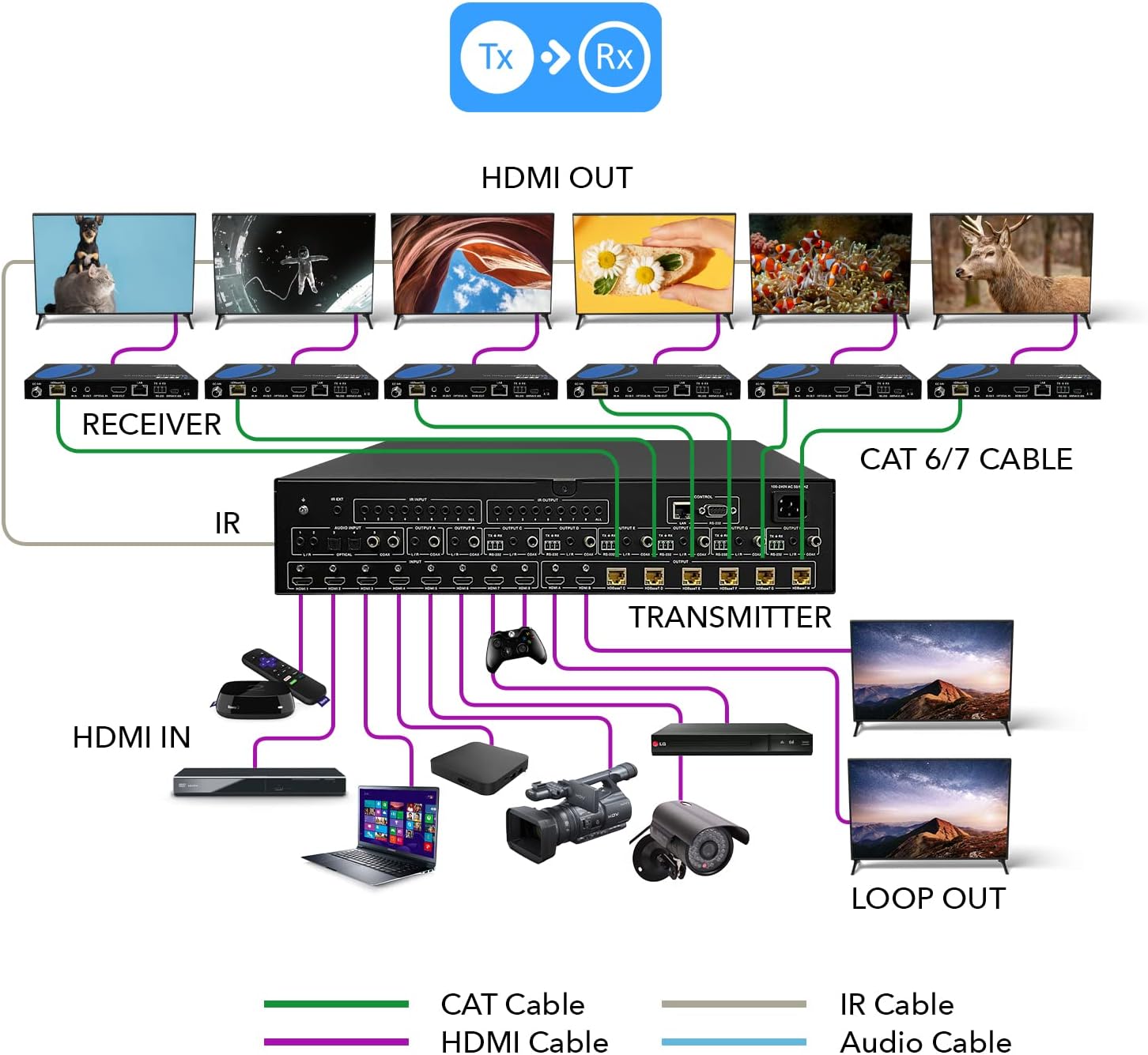

• Includes 8 HDMI inputs and 8 outputs with 8 loop outs over CAT5e/6/7 LAN cables up to 330 feet, plus 8 additional local loop outs at the source. A professional distribution product, ideal for 4K Blu-ray players, gaming consoles, media players, satellite receivers, computers, laptops, and more.
• Delivers full Ultra HD resolutions: 4K 60/50Hz @12-bit, 4K @60Hz, 4K 30Hz @24-bit, 1080p/i, 720p, 576p/i, and 480p/i. Compatible with LPCM, DTS-HD, Dolby TrueHD, and more. HDMI 2.0 features with HDCP 2.2/1.4 compliance, RS-232 function, Control4 driver, 4-channel bypass, 8 audio outputs, full EDID management, and wideband IR (30–60kHz) for forward/backward IR transport.

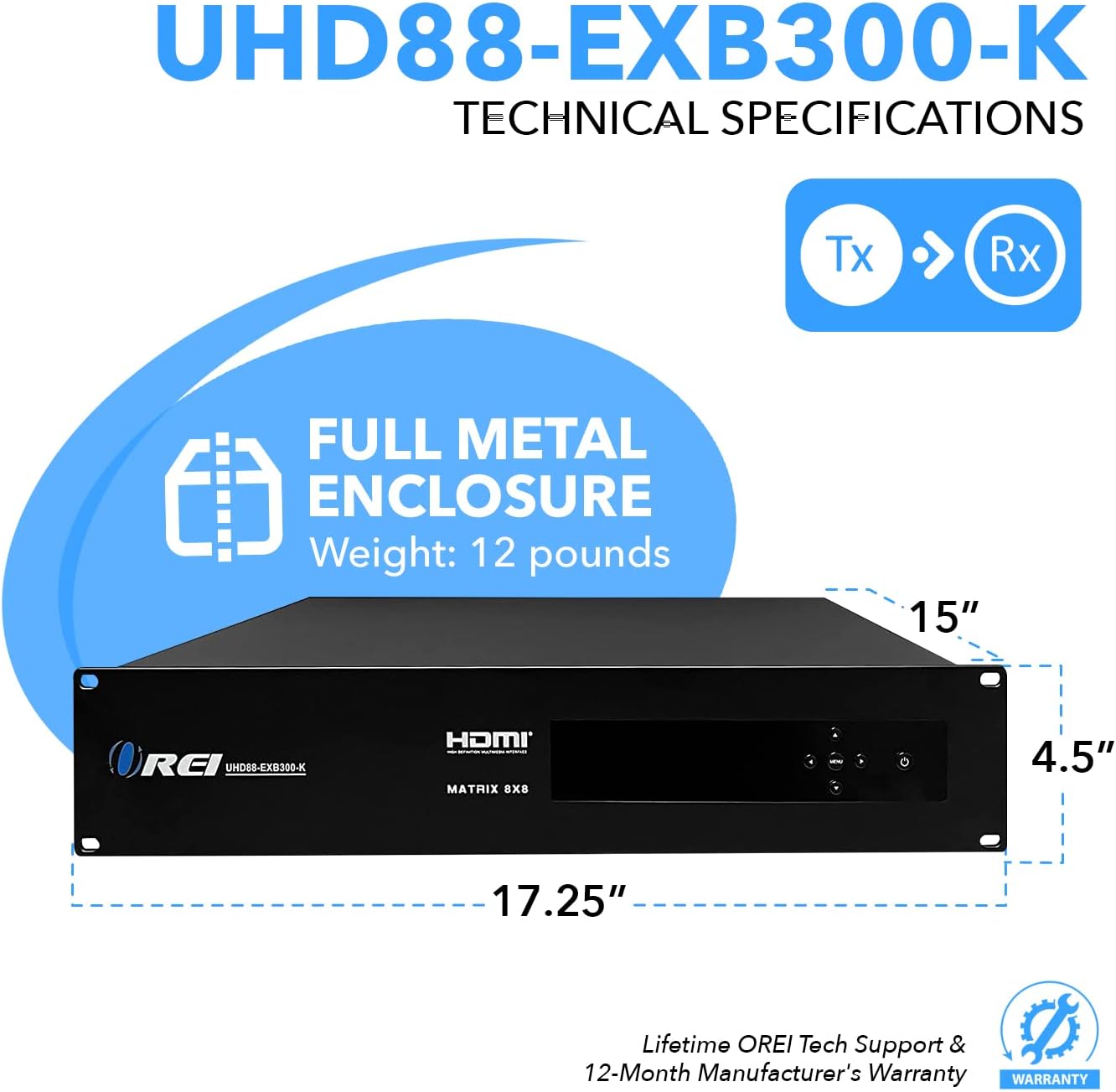

• Control via front panel, IR remote, RS-232, LAN, or Web GUI. Heavy-duty metal enclosure protects internal components and ensures fast heat dissipation. Compact plug-and-play design makes installation simple, and it is fully HDCP compliant for secure use.

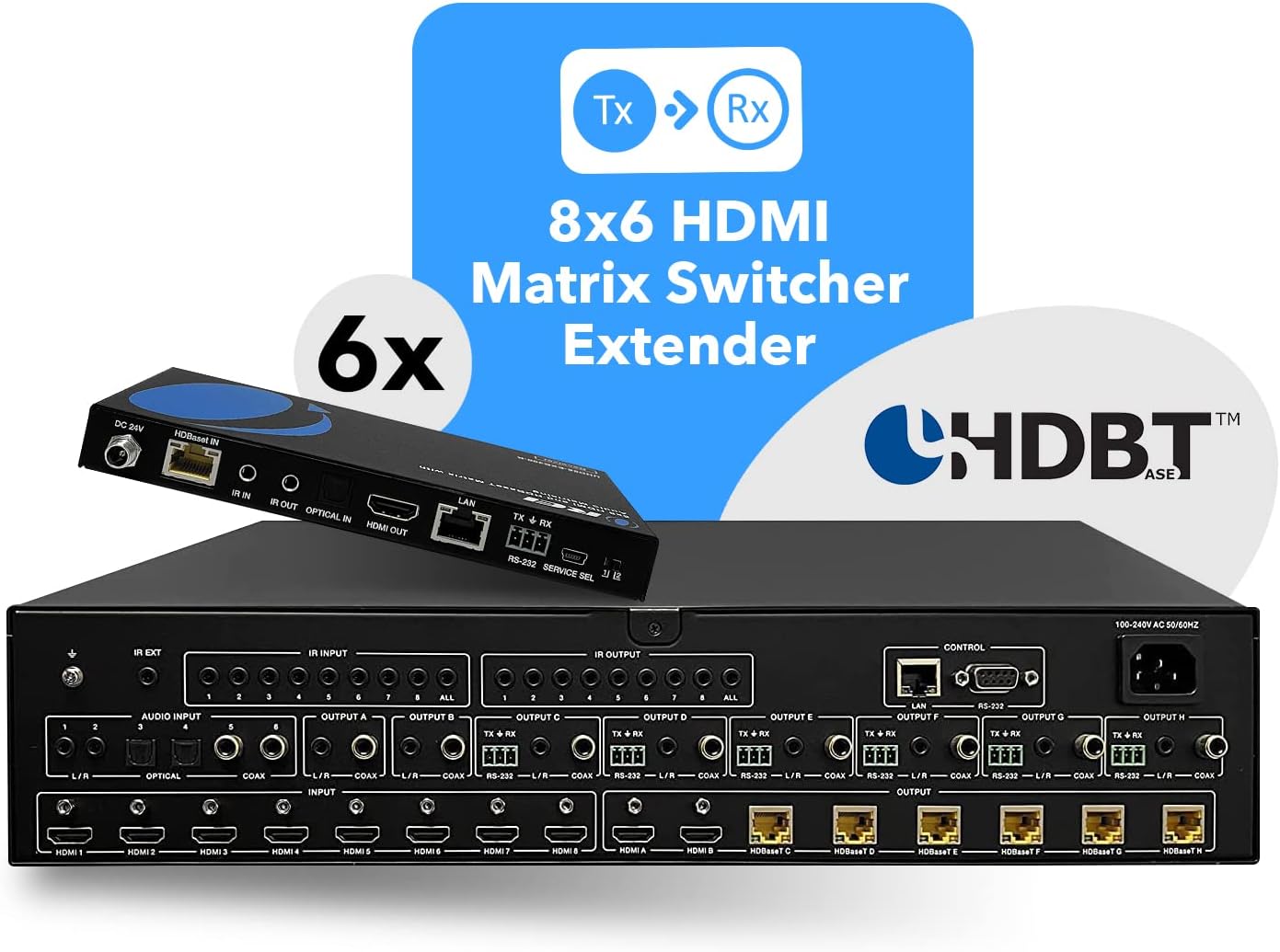

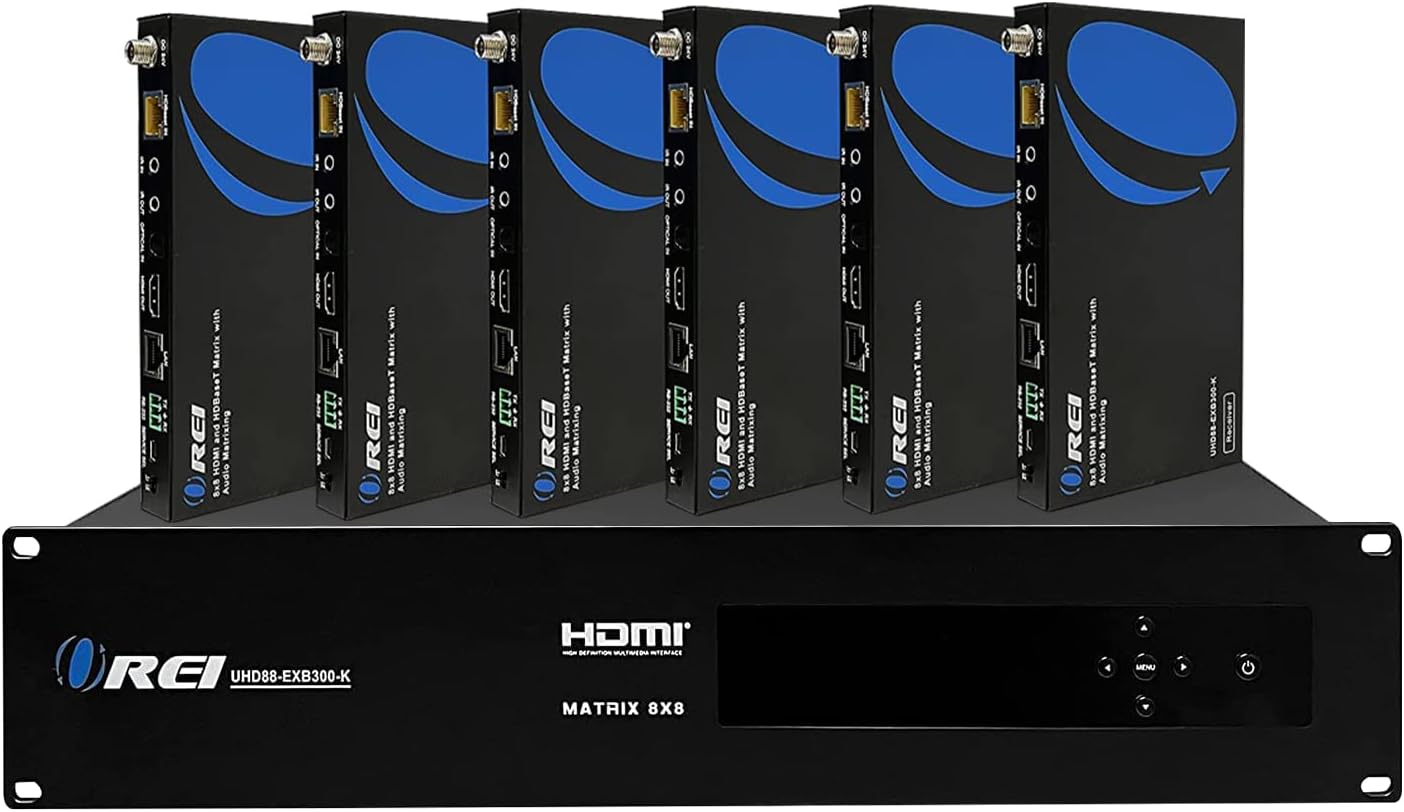

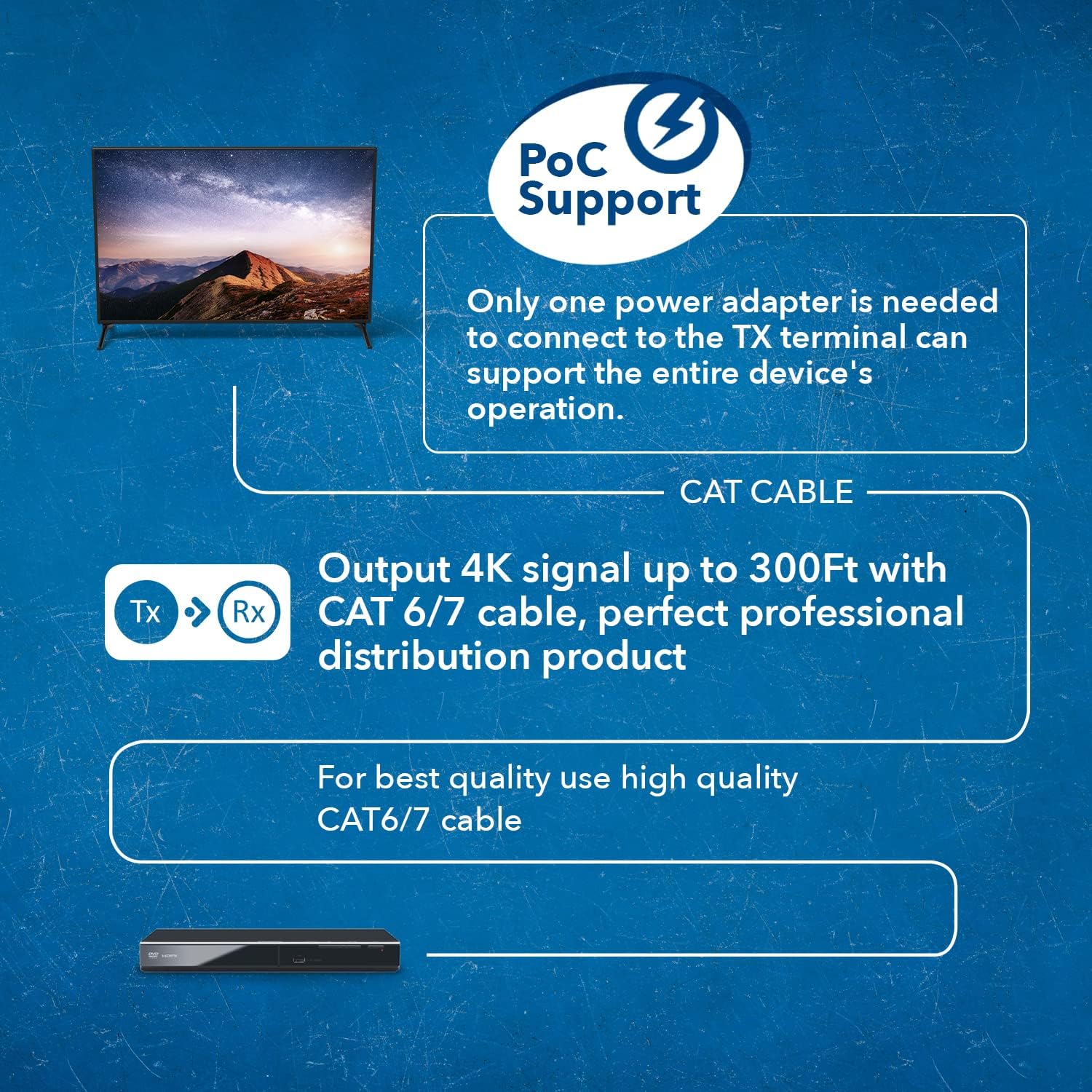

• Comes with OREI’s full support and 1-year warranty. Package includes HDMI extender matrix, 8 receivers, power adapter, IR receiver/blaster cables, remote, mounting ears, RS-232 cable, and Phoenix connectors. Requires only one power adapter to function. Built on HDBaseT technology for zero-latency, uncompressed signal transfer, with POE support for power over cable. For best performance, use high-quality CAT6 shielded cables and avoid converters/adapters.
• Note: OREI HDBaseT models are designed to work only with their own matching transmitter and receiver. They are not interchangeable with other OREI HDBaseT models, nor compatible with HDBaseT devices from other brands, due to chipset differences. For best results, always use the included or recommended pair from the same model.
